AT Fluid check on BMW

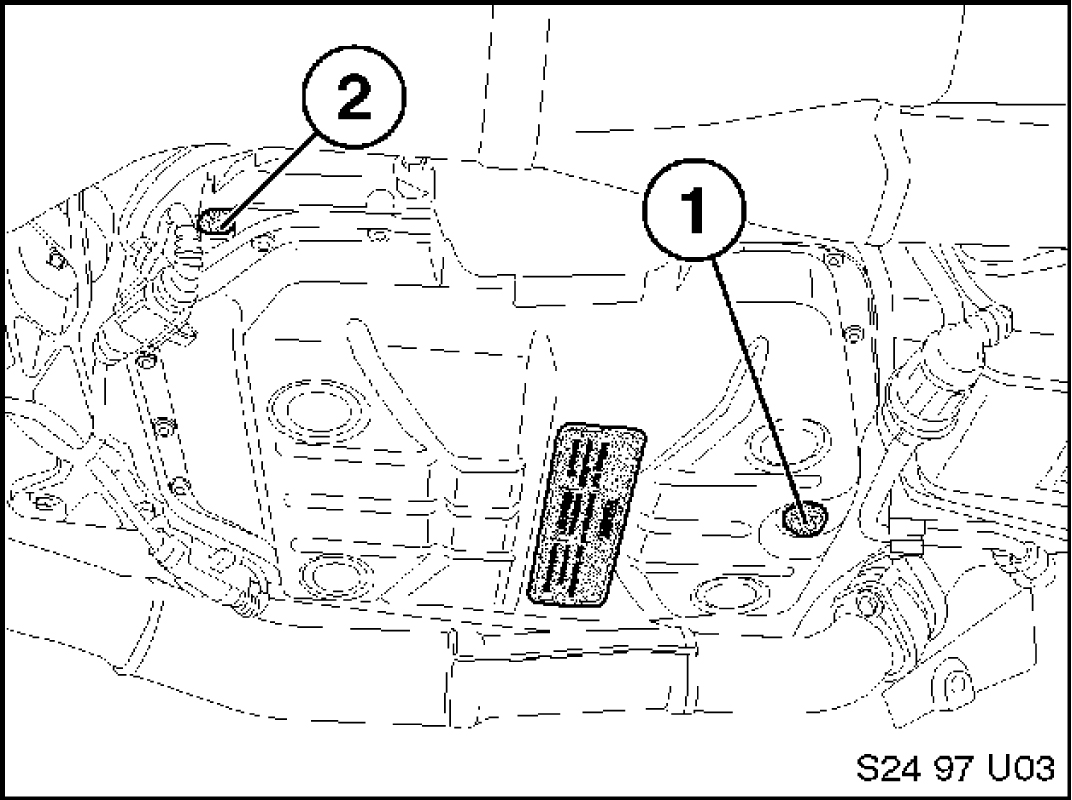

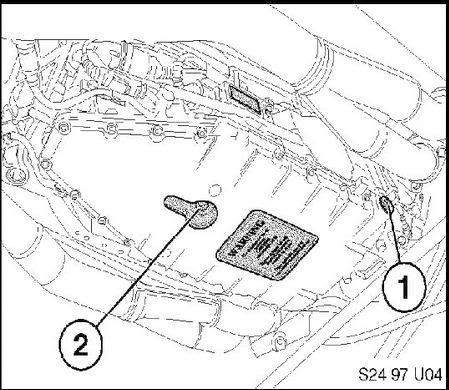

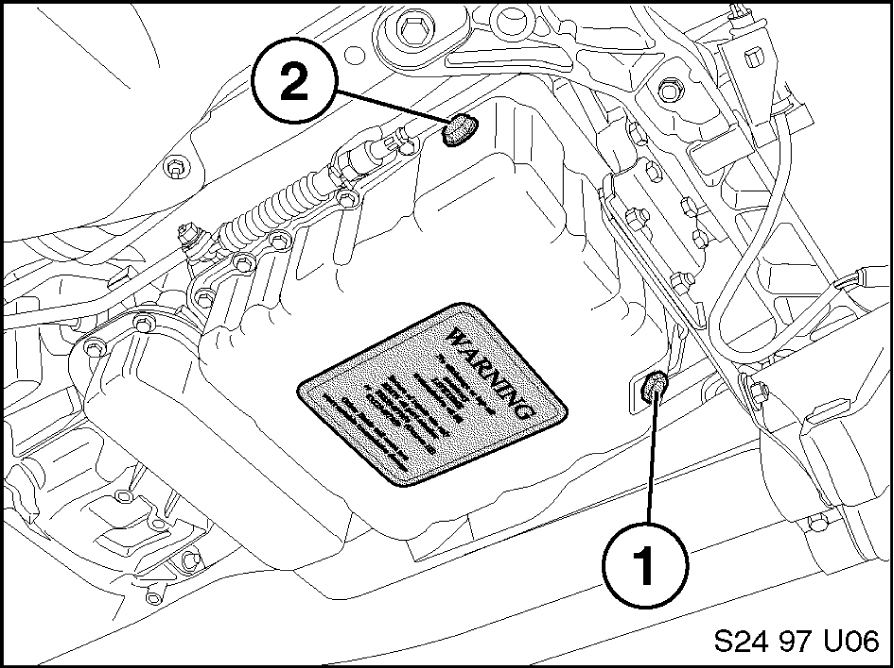

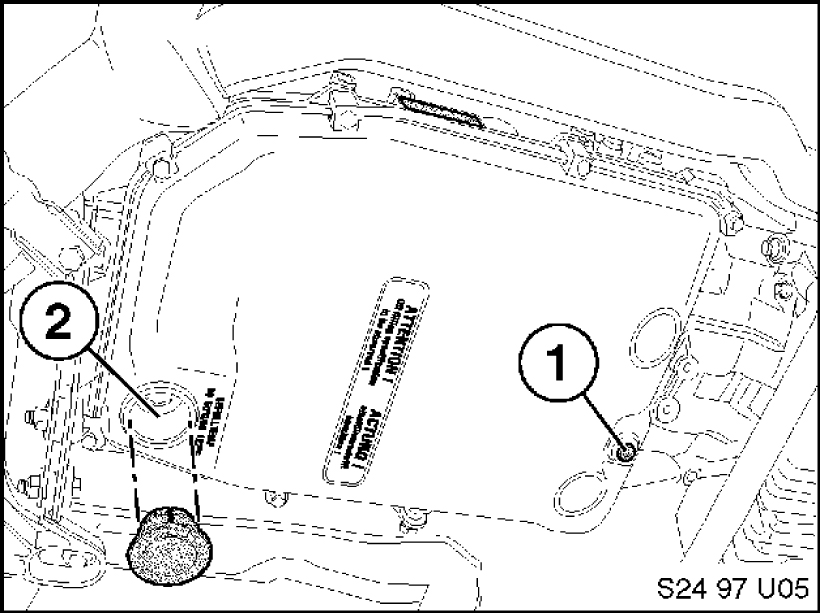

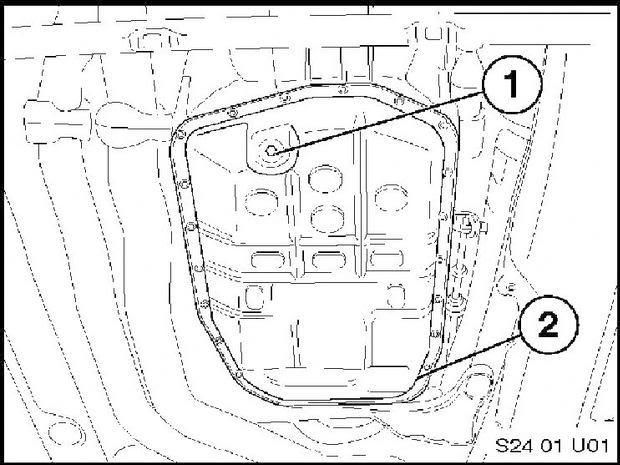

All No 1 are drain plugs
All No 2 are for adding and checking
The ATF fluid level check must be done in P (Park) position with engine at idle and temperature at 30 - 40 Co. We have correct level when there is continues fluid flow from the removed plug, if not add until you get the flow.

5HP30 A5S 560Z


5HP24 A5S 440Z


5HP19 A5S 325Z


5HP18 A5S 310Z


THM R1 A4S 310R A4S 270R
GM 4L30E


A5S 360R A5S 390R
